How to Detect and Classify Traffic Lights

cover-traffic-light-color-detection

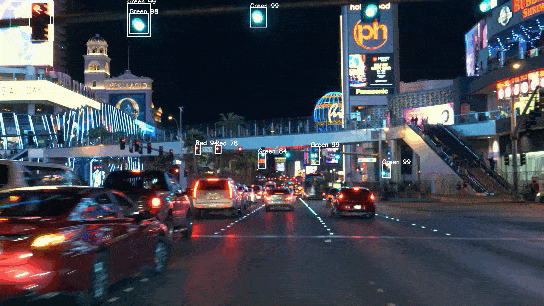

In this tutorial, we will develop a program to detect traffic lights and then classify their color (e.g. red, green, and yellow). Our program will first use a pretrained neural network to detect traffic lights, then it will run those detections through another neural network which is trained to identify the color. By the end of this tutorial, you will be able to develop this:

Our goal is to build an early prototype of a system that can be used in an autonomous vehicle.


Real-World Applications

  • Self-driving cars/autonomous vehicles

Prerequisites

Helpful Tip

As you work through this tutorial, focus on the end goals I listed in the beginning. Don’t get bogged down in trying to understand every last detail of the math and the libraries we will use to develop the application.

We are trying to build products not publish research papers. Focus on the inputs, the outputs, and what the algorithm is supposed to do at a high level.

Get a working traffic light detector and classifier up and running; and, at some later date when you want to add more complexity to your project or write a research paper, you can dive deeper under the hood to understand all the details.

Trying to understand every last detail is like trying to build your own database from scratch in order to start a website or taking a course on internal combustion engines to learn how to drive a car.

Let’s get started!

Find Some Videos and an Image

The first thing we need to do is find some videos and an image to serve as our test cases.

We want to download videos and images that show traffic lights. Images of streets from the point of view of a driver in a car are good candidates.

I found some good candidates on Pixabay.com and Dreamstime.com. Type “driving” or “traffic lights” in the video search on that website.

The Bosch Small Traffic Lights Dataset is another source for images.

Here is what a sample image might look like:

image-green-light

Installation and Setup

We now need to make sure we have all the software packages installed. Check to see if you have OpenCV installed on your machine. If you are using Anaconda, you can type:

conda install -c conda-forge opencv

Alternatively, you can type:

pip install opencv-python

Make sure you have NumPy installed, a scientific computing library for Python.

If you’re using Anaconda, you can type:

conda install numpy

Alternatively, you can type:

pip install numpy

Install Matplotlib, a plotting library for Python.

For Anaconda users:

conda install -c conda-forge matplotlib

Otherwise, you can install like this:

pip install matplotlib

Extract Traffic Lights From Images

We now need to go through all of our images and extract the traffic lights. We want a good mix of green, yellow, and red traffic light examples.

To do this, we will create two programs:

extract_traffic_lights.py: This program is the driver. You will run this program to create cropped images of traffic lights.

object_detection.py: This program contains a bunch of methods for traffic light detection (as well as other objects like pedestrians, cars, and stop signs).

Here is the code for extract_traffic_lights.py:

# Project: How to Detect and Classify Traffic Lights
# Author: Addison Sears-Collins
# Date created: January 11, 2021
# Description: This program extracts traffic lights from images.

import cv2 # Computer vision library
import object_detection # Contains methods for object detection in images

# Get a list of jpeg image files containing traffic lights
files = object_detection.get_files('traffic_light_input/*.jpg')

# Load the object detection model
this_model = object_detection.load_ssd_coco()

# Keep track of the number of traffic lights found
traffic_light_count = 0

# Keep track of the number of image files that were processed
file_count = 0

# Display a count of the number of images we need to process
print("Number of Images:", len(files))

# Go through each image file, one at a time
for file in files:

  # Detect objects in the image
  # img_rgb is the original image in RGB format
  # out is a dictionary containing the results of object detection
  # file_name is the name of the file
  (img_rgb, out, file_name) = object_detection.perform_object_detection(model=this_model, file_name=file, save_annotated=None, model_traffic_lights=None)

  # Every 10 files that are processed
  if (file_count % 10) == 0:

    # Display a count of the number of files that have been processed
    print("Images processed:", file_count)

    # Display the total number of traffic lights that have been identified so far
    print("Number of Traffic lights identified: ", traffic_light_count)

  # Increment the number of files by 1
  file_count = file_count + 1

  # For each traffic light (i.e. bounding box) that was detected
  for idx in range(len(out['boxes'])):

    # Extract the type of object that was detected
    obj_class = out["detection_classes"][idx]

    # If the object that was detected is a traffic light
    if obj_class == object_detection.LABEL_TRAFFIC_LIGHT:

      # Extract the coordinates of the bounding box
      box = out["boxes"][idx]

      # Extract (i.e. crop) the traffic light from the image
      traffic_light = img_rgb[box["y"]:box["y2"], box["x"]:box["x2"]]

      # Convert the traffic light from RGB format into BGR format
      traffic_light = cv2.cvtColor(traffic_light, cv2.COLOR_RGB2BGR)

      # Store the cropped image in a folder named 'traffic_light_cropped'
      cv2.imwrite("traffic_light_cropped/" + str(traffic_light_count) + ".jpg", traffic_light)

      # Increment the number of traffic lights by 1
      traffic_light_count = traffic_light_count + 1

# Display the total number of traffic lights identified
print("Number of Traffic lights identified:", traffic_light_count)

Here is the code for object_detection.py:

# Project: How to Detect and Classify Traffic Lights
# Author: Addison Sears-Collins
# Date created: January 11, 2021
# Description: This program helps detect objects (e.g. traffic lights) in
#   images.

import tensorflow as tf # Machine learning library
from tensorflow import keras # Library for neural networks
import numpy as np # Scientific computing library
import cv2 # Computer vision library
import glob # Filename handling library

# Inception V3 model for Keras
from tensorflow.keras.applications.inception_v3 import preprocess_input

# To detect objects, we will use a pretrained neural network that has been
# trained on the COCO data set. You can read more about this data set here:
#   https://content.alegion.com/datasets/coco-ms-coco-dataset
# COCO labels are here: https://github.com/tensorflow/models/blob/master/research/object_detection/data/mscoco_label_map.pbtxt
LABEL_PERSON = 1
LABEL_CAR = 3
LABEL_BUS = 6
LABEL_TRUCK = 8
LABEL_TRAFFIC_LIGHT = 10
LABEL_STOP_SIGN = 13

def accept_box(boxes, box_index, tolerance):
  """
  Eliminate duplicate bounding boxes.
  """
  box = boxes[box_index]

  for idx in range(box_index):
    other_box = boxes[idx]
    if abs(center(other_box, "x") - center(box, "x")) < tolerance and abs(center(other_box, "y") - center(box, "y")) < tolerance:
      return False

  return True

def get_files(pattern):
  """
  Create a list of all the images in a directory

  :param:pattern str The pattern of the filenames
  :return: A list of the files that match the specified pattern
  """
  files = []

  # For each file that matches the specified pattern
  for file_name in glob.iglob(pattern, recursive=True):

    # Add the image file to the list of files
    files.append(file_name)

  # Return the complete file list
  return files

def load_model(model_name):
  """
  Download a pretrained object detection model, and save it to your hard drive.
  :param:str Name of the pretrained object detection model
  """
  url = 'http://download.tensorflow.org/models/object_detection/tf2/20200711/' + model_name + '.tar.gz'

  # Download a file from a URL that is not already in the cache
  model_dir = tf.keras.utils.get_file(fname=model_name, untar=True, origin=url)

  print("Model path: ", str(model_dir))

  model_dir = str(model_dir) + "/saved_model"
  model = tf.saved_model.load(str(model_dir))

  return model

def load_rgb_images(pattern, shape=None):
  """
  Loads the images in RGB format.

  :param:pattern str The pattern of the filenames
  :param:shape Image dimensions (width, height)
  """
  # Get a list of all the image files in a directory
  files = get_files(pattern)

  # For each image in the directory, convert it from BGR format to RGB format
  images = [cv2.cvtColor(cv2.imread(file), cv2.COLOR_BGR2RGB) for file in files]

  # Resize the image if the desired shape is provided
  if shape:
    return [cv2.resize(img, shape) for img in images]
  else:
    return images

def load_ssd_coco():
  """
  Load the neural network that has the SSD architecture, trained on the COCO
  data set.
  """
  return load_model("ssd_resnet50_v1_fpn_640x640_coco17_tpu-8")

def save_image_annotated(img_rgb, file_name, output, model_traffic_lights=None):
  """
  Annotate the image with the object types, and generate cropped images of
  traffic lights.
  """
  # Create annotated image file
  output_file = file_name.replace('.jpg', '_test.jpg')

  # For each bounding box that was detected
  for idx in range(len(output['boxes'])):

    # Extract the type of the object that was detected
    obj_class = output["detection_classes"][idx]

    # How confident the object detection model is on the object's type
    score = int(output["detection_scores"][idx] * 100)

    # Extract the bounding box
    box = output["boxes"][idx]

    color = None
    label_text = ""

    if obj_class == LABEL_PERSON:
      color = (0, 255, 255)
      label_text = "Person " + str(score)
    if obj_class == LABEL_CAR:
      color = (255, 255, 0)
      label_text = "Car " + str(score)
    if obj_class == LABEL_BUS:
      color = (255, 255, 0)
      label_text = "Bus " + str(score)
    if obj_class == LABEL_TRUCK:
      color = (255, 255, 0)
      label_text = "Truck " + str(score)
    if obj_class == LABEL_STOP_SIGN:
      color = (128, 0, 0)
      label_text = "Stop Sign " + str(score)
    if obj_class == LABEL_TRAFFIC_LIGHT:
      color = (255, 255, 255)
      label_text = "Traffic Light " + str(score)

      if model_traffic_lights:

			  # Annotate the image and save it
        img_traffic_light = img_rgb[box["y"]:box["y2"], box["x"]:box["x2"]]
        img_inception = cv2.resize(img_traffic_light, (299, 299))

				# Uncomment this if you want to save a cropped image of the traffic light
        #cv2.imwrite(output_file.replace('.jpg', '_crop.jpg'), cv2.cvtColor(img_inception, cv2.COLOR_RGB2BGR))
        img_inception = np.array([preprocess_input(img_inception)])

        prediction = model_traffic_lights.predict(img_inception)
        label = np.argmax(prediction)
        score_light = str(int(np.max(prediction) * 100))
        if label == 0:
          label_text = "Green " + score_light
        elif label == 1:
          label_text = "Yellow " + score_light
        elif label == 2:
          label_text = "Red " + score_light
        else:
          label_text = 'NO-LIGHT'  # This is not a traffic light

    if color and label_text and accept_box(output["boxes"], idx, 5.0) and score > 50:
      cv2.rectangle(img_rgb, (box["x"], box["y"]), (box["x2"], box["y2"]), color, 2)
      cv2.putText(img_rgb, label_text, (box["x"], box["y"]), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255, 255, 255), 2)

  cv2.imwrite(output_file, cv2.cvtColor(img_rgb, cv2.COLOR_RGB2BGR))
  print(output_file)

def center(box, coord_type):
  """
  Get center of the bounding box.
  """
  return (box[coord_type] + box[coord_type + "2"]) / 2

def perform_object_detection(model, file_name, save_annotated=False, model_traffic_lights=None):
  """
  Perform object detection on an image using the predefined neural network.
  """
  # Store the image
  img_bgr = cv2.imread(file_name)
  img_rgb = cv2.cvtColor(img_bgr, cv2.COLOR_BGR2RGB)
  input_tensor = tf.convert_to_tensor(img_rgb) # Input needs to be a tensor
  input_tensor = input_tensor[tf.newaxis, ...]

  # Run the model
  output = model(input_tensor)

  print("num_detections:", output['num_detections'], int(output['num_detections']))

  # Convert the tensors to a NumPy array
  num_detections = int(output.pop('num_detections'))
  output = {key: value[0, :num_detections].numpy()
            for key, value in output.items()}
  output['num_detections'] = num_detections

  print('Detection classes:', output['detection_classes'])
  print('Detection Boxes:', output['detection_boxes'])

  # The detected classes need to be integers.
  output['detection_classes'] = output['detection_classes'].astype(np.int64)
  output['boxes'] = [
    {"y": int(box[0] * img_rgb.shape[0]), "x": int(box[1] * img_rgb.shape[1]), "y2": int(box[2] * img_rgb.shape[0]),
     "x2": int(box[3] * img_rgb.shape[1])} for box in output['detection_boxes']]

  if save_annotated:
    save_image_annotated(img_rgb, file_name, output, model_traffic_lights)

  return img_rgb, output, file_name

def perform_object_detection_video(model, video_frame, model_traffic_lights=None):
  """
  Perform object detection on a video using the predefined neural network.

  Returns the annotated video frame.
  """
  # Store the image
  img_rgb = cv2.cvtColor(video_frame, cv2.COLOR_BGR2RGB)
  input_tensor = tf.convert_to_tensor(img_rgb) # Input needs to be a tensor
  input_tensor = input_tensor[tf.newaxis, ...]

  # Run the model
  output = model(input_tensor)

  # Convert the tensors to a NumPy array
  num_detections = int(output.pop('num_detections'))
  output = {key: value[0, :num_detections].numpy()
            for key, value in output.items()}
  output['num_detections'] = num_detections

  # The detected classes need to be integers.
  output['detection_classes'] = output['detection_classes'].astype(np.int64)
  output['boxes'] = [
    {"y": int(box[0] * img_rgb.shape[0]), "x": int(box[1] * img_rgb.shape[1]), "y2": int(box[2] * img_rgb.shape[0]),
     "x2": int(box[3] * img_rgb.shape[1])} for box in output['detection_boxes']]

  # For each bounding box that was detected
  for idx in range(len(output['boxes'])):

    # Extract the type of the object that was detected
    obj_class = output["detection_classes"][idx]

    # How confident the object detection model is on the object's type
    score = int(output["detection_scores"][idx] * 100)

    # Extract the bounding box
    box = output["boxes"][idx]

    color = None
    label_text = ""

    # if obj_class == LABEL_PERSON:
      # color = (0, 255, 255)
      # label_text = "Person " + str(score)
    # if obj_class == LABEL_CAR:
      # color = (255, 255, 0)
      # label_text = "Car " + str(score)
    # if obj_class == LABEL_BUS:
      # color = (255, 255, 0)
      # label_text = "Bus " + str(score)
    # if obj_class == LABEL_TRUCK:
      # color = (255, 255, 0)
      # label_text = "Truck " + str(score)
    if obj_class == LABEL_STOP_SIGN:
      color = (128, 0, 0)
      label_text = "Stop Sign " + str(score)
    if obj_class == LABEL_TRAFFIC_LIGHT:
      color = (255, 255, 255)
      label_text = "Traffic Light " + str(score)

      if model_traffic_lights:

			  # Annotate the image and save it
        img_traffic_light = img_rgb[box["y"]:box["y2"], box["x"]:box["x2"]]
        img_inception = cv2.resize(img_traffic_light, (299, 299))

        img_inception = np.array([preprocess_input(img_inception)])

        prediction = model_traffic_lights.predict(img_inception)
        label = np.argmax(prediction)
        score_light = str(int(np.max(prediction) * 100))
        if label == 0:
          label_text = "Green " + score_light
        elif label == 1:
          label_text = "Yellow " + score_light
        elif label == 2:
          label_text = "Red " + score_light
        else:
          label_text = 'NO-LIGHT'  # This is not a traffic light

    # Use the score variable to indicate how confident we are it is a traffic light (in % terms)
    # On the actual video frame, we display the confidence that the light is either red, green,
    # yellow, or not a valid traffic light.
    if color and label_text and accept_box(output["boxes"], idx, 5.0) and score > 20:
      cv2.rectangle(img_rgb, (box["x"], box["y"]), (box["x2"], box["y2"]), color, 2)
      cv2.putText(img_rgb, label_text, (box["x"], box["y"]), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255, 255, 255), 2)

  output_frame = cv2.cvtColor(img_rgb, cv2.COLOR_RGB2BGR)
  return output_frame

def double_shuffle(images, labels):
  """
  Shuffle the images to add some randomness.
  """
  indexes = np.random.permutation(len(images))

  return [images[idx] for idx in indexes], [labels[idx] for idx in indexes]

def reverse_preprocess_inception(img_preprocessed):
  """
  Reverse the preprocessing process.
  """
  img = img_preprocessed + 1.0
  img = img * 127.5
  return img.astype(np.uint8)

In order to detect the traffic lights in the image, we will use a pretrained object detection model available from TensorFlow. This model has been trained using the COCO data set

You can see a list of object detection models on this page at GitHub

When the model downloads, it will go to the C:\…\…\.keras\datasets folder. The first time you run extract_traffic_lights.py, the model will download to that directory.

Now, let’s run the program.

python extract_traffic_lights.py

Here is what you should see when you run it.

1-downloading-model-first-time-extractionJPG

When you run the program above, it will generate a bunch of cropped images of traffic lights and save them inside the current directory in the traffic_light_cropped folder.

I had 1,170 cropped images of traffic lights (or pieces of traffic lights).

2-running-extract-pyJPG

Here is what some of the cropped images look like:

121
1088
1-5

Separate the Traffic Light Images by Color

We now need to separate the cropped images of traffic lights by color.

Create a new folder inside the current directory named traffic_light_dataset.

Inside the traffic_light_dataset folder, create three separate folders:

  • 0_green
  • 1_yellow
  • 2_red
  • 3_not

Go back to the traffic_light_cropped folder.

  • Grab some good images of green traffic lights, and place them in the 0_green folder.
  • Grab some good images of yellow traffic lights, and place them in the 1_yellow folder.
  • Grab some good images of red traffic lights, and place them in the 2_red folder.
  • Grab some good images of the back and side of a traffic light (or pieces of buildings or something else that isn’t a traffic light), and place them in the 3_not folder. These images are your negative samples. Sometimes your neural network will classify an object as a traffic light, but it will actually be the back or side of a traffic light, so it isn’t useful for a self-driving car.

Here is an example of a 3_not image:

49

Note that the images are different sizes. This is exactly what we want.

We now have a custom traffic light data set that will enable us to train a neural network to detect the color of a traffic light.

The more images you have, the better. The performance of neural networks tends to improve with more training examples.

Use Transfer Learning to Create a Traffic Light Color Detection System

We are now going to use a technique called transfer learning to create a traffic light color detection system.

Transfer learning involves storing the knowledge gained while solving one problem and reapplying that knowledge to solve another, similar problem.

We will use the Inception V3 neural network architecture to perform this task.

Within the same directory that contains the object_detection.py program, open up a new Python program called train_traffic_light_color.py. This program will train a neural network to detect traffic light color. The best neural network will be saved as traffic.h5.

20% of the images in the traffic_light_dataset folder will be the validation data set, and 80% of the images will be the training data set. The validation data set is used to tune the architecture of the neural network. It helps us to find the best neural network architecture to solve the problem (i.e. to determine the traffic light color).

The validation data set is also used to determine when the neural network needs to stop training. Once the error (i.e. loss) on the validation data set reaches a minimum, training stops. This process is known as early stopping.

Here is the code for train_traffic_light_color.py:

# Project: How to Detect and Classify Traffic Lights
# Author: Addison Sears-Collins
# Date created: January 17, 2021
# Description: This program trains a neural network to detect the color
#   of a traffic light. Performance on the validation data set is saved
#   to a directory. Also, the best neural network model is saved as
#   traffic.h5.

import collections # Handles specialized container datatypes
import cv2 # Computer vision library
import matplotlib.pyplot as plt # Plotting library
import numpy as np # Scientific computing library
import object_detection # Custom object detection program
import sys
import tensorflow as tf # Machine learning library
from tensorflow import keras # Library for neural networks
from tensorflow.keras.applications.inception_v3 import InceptionV3, preprocess_input
from tensorflow.keras.callbacks import ModelCheckpoint, EarlyStopping
from tensorflow.keras.layers import Dense, Flatten, Dropout, GlobalAveragePooling2D, GlobalMaxPooling2D, BatchNormalization
from tensorflow.keras.losses import categorical_crossentropy
from tensorflow.keras.models import Model, Sequential
from tensorflow.keras.optimizers import Adam, Adadelta
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.utils import to_categorical
sys.path.append('../')

# Show the version of TensorFlow and Keras that I am using
print("TensorFlow", tf.__version__)
print("Keras", keras.__version__)

def show_history(history):
  """
  Visualize the neural network model training history

  :param:history A record of training loss values and metrics values at
                 successive epochs, as well as validation loss values
                 and validation metrics values
  """
  plt.plot(history.history['accuracy'])
  plt.plot(history.history['val_accuracy'])
  plt.title('model accuracy')
  plt.ylabel('accuracy')
  plt.xlabel('epoch')
  plt.legend(['train_accuracy', 'validation_accuracy'], loc='best')
  plt.show()

def Transfer(n_classes, freeze_layers=True):
  """
  Use the InceptionV3 neural network architecture to perform transfer learning.

  :param:n_classes Number of classes
  :param:freeze_layers If True, the network's parameters don't change.
  :return The best neural network
  """
  print("Loading Inception V3...")

  # To understand what the parameters mean, do a Google search 'inceptionv3 keras'.
  # The first search result should send you to the Keras website, which has an
  # explanation of what each of these parameters mean.
  # input_top means we are removing the top part of the Inception model, which is the
  # classifier.
  # input_shape needs to have 3 channels, and needs to be at least 75x75 for the
  # resolution.
  # Our neural network will build off of the Inception V3 model (trained on the ImageNet
  # data set).
  base_model = InceptionV3(weights='imagenet', include_top=False, input_shape=(299, 299, 3))

  print("Inception V3 has finished loading.")

  # Display the base network architecture
  print('Layers: ', len(base_model.layers))
  print("Shape:", base_model.output_shape[1:])
  print("Shape:", base_model.output_shape)
  print("Shape:", base_model.outputs)
  base_model.summary()

  # Create the neural network. This network uses the Sequential
  # architecture where each layer has one
  # input tensor (e.g. vector, matrix, etc.) and one output tensor
  top_model = Sequential()

  # Our classifier model will build on top of the base model
  top_model.add(base_model)
  top_model.add(GlobalAveragePooling2D())
  top_model.add(Dropout(0.5))
  top_model.add(Dense(1024, activation='relu'))
  top_model.add(BatchNormalization())
  top_model.add(Dropout(0.5))
  top_model.add(Dense(512, activation='relu'))
  top_model.add(Dropout(0.5))
  top_model.add(Dense(128, activation='relu'))
  top_model.add(Dense(n_classes, activation='softmax'))

  # Freeze layers in the model so that they cannot be trained (i.e. the
  # parameters in the neural network will not change)
  if freeze_layers:
    for layer in base_model.layers:
      layer.trainable = False

  return top_model

# Perform image augmentation.
# Image augmentation enables us to alter the available images
# (e.g. rotate, flip, changing the hue, etc.) to generate more images that our
# neural network can use for training...therefore preventing us from having to
# collect more external images.
datagen = ImageDataGenerator(rotation_range=5, width_shift_range=[-10, -5, -2, 0, 2, 5, 10],
                             zoom_range=[0.7, 1.5], height_shift_range=[-10, -5, -2, 0, 2, 5, 10],
                             horizontal_flip=True)

shape = (299, 299)

# Load the cropped traffic light images from the appropriate directory
img_0_green = object_detection.load_rgb_images("traffic_light_dataset/0_green/*", shape)
img_1_yellow = object_detection.load_rgb_images("traffic_light_dataset/1_yellow/*", shape)
img_2_red = object_detection.load_rgb_images("traffic_light_dataset/2_red/*", shape)
img_3_not_traffic_light = object_detection.load_rgb_images("traffic_light_dataset/3_not/*", shape)

# Create a list of the labels that is the same length as the number of images in each
# category
# 0 = green
# 1 = yellow
# 2 = red
# 3 = not a traffic light
labels = [0] * len(img_0_green)
labels.extend([1] * len(img_1_yellow))
labels.extend([2] * len(img_2_red))
labels.extend([3] * len(img_3_not_traffic_light))

# Create NumPy array
labels_np = np.ndarray(shape=(len(labels), 4))
images_np = np.ndarray(shape=(len(labels), shape[0], shape[1], 3))

# Create a list of all the images in the traffic lights data set
img_all = []
img_all.extend(img_0_green)
img_all.extend(img_1_yellow)
img_all.extend(img_2_red)
img_all.extend(img_3_not_traffic_light)

# Make sure we have the same number of images as we have labels
assert len(img_all) == len(labels)

# Shuffle the images
img_all = [preprocess_input(img) for img in img_all]
(img_all, labels) = object_detection.double_shuffle(img_all, labels)

# Store images and labels in a NumPy array
for idx in range(len(labels)):
  images_np[idx] = img_all[idx]
  labels_np[idx] = labels[idx]

print("Images: ", len(img_all))
print("Labels: ", len(labels))

# Perform one-hot encoding
for idx in range(len(labels_np)):
  # We have four integer labels, representing the different colors of the
  # traffic lights.
  labels_np[idx] = np.array(to_categorical(labels[idx], 4))

# Split the data set into a training set and a validation set
# The training set is the portion of the data set that is used to
#   determine the parameters (e.g. weights) of the neural network.
# The validation set is the portion of the data set used to
#   fine tune the model-specific parameters (i.e. hyperparameters) that are
#   fixed before you train and test your neural network on the data. The
#   validation set helps us select the final model (e.g. learning rate,
#   number of hidden layers, number of hidden units, activation functions,
#   number of epochs, etc.
# In this case, 80% of the data set becomes training data, and 20% of the
# data set becomes validation data.
idx_split = int(len(labels_np) * 0.8)
x_train = images_np[0:idx_split]
x_valid = images_np[idx_split:]
y_train = labels_np[0:idx_split]
y_valid = labels_np[idx_split:]

# Store a count of the number of traffic lights of each color
cnt = collections.Counter(labels)
print('Labels:', cnt)
n = len(labels)
print('0:', cnt[0])
print('1:', cnt[1])
print('2:', cnt[2])
print('3:', cnt[3])

# Calculate the weighting of each traffic light class
class_weight = {0: n / cnt[0], 1: n / cnt[1], 2: n / cnt[2], 3: n / cnt[3]}
print('Class weight:', class_weight)

# Save the best model as traffic.h5
checkpoint = ModelCheckpoint("traffic.h5", monitor='val_loss', mode='min', verbose=1, save_best_only=True)
early_stopping = EarlyStopping(min_delta=0.0005, patience=15, verbose=1)

# Generate model using transfer learning
model = Transfer(n_classes=4, freeze_layers=True)

# Display a summary of the neural network model
model.summary()

# Generate a batch of randomly transformed images
it_train = datagen.flow(x_train, y_train, batch_size=32)

# Configure the model parameters for training
model.compile(loss=categorical_crossentropy, optimizer=Adadelta(
  lr=1.0, rho=0.95, epsilon=1e-08, decay=0.0), metrics=['accuracy'])

# Train the model on the image batches for a fixed number of epochs
# Store a record of the error on the training data set and metrics values
#   in the history object.
history_object = model.fit(it_train, epochs=250, validation_data=(
  x_valid, y_valid), shuffle=True, callbacks=[
  checkpoint, early_stopping], class_weight=class_weight)

# Display the training history
show_history(history_object)

# Get the loss value and metrics values on the validation data set
score = model.evaluate(x_valid, y_valid, verbose=0)
print('Validation loss:', score[0])
print('Validation accuracy:', score[1])

print('Saving the validation data set...')

print('Length of the validation data set:', len(x_valid))

# Go through the validation data set, and see how the model did on each image
for idx in range(len(x_valid)):

  # Make the image a NumPy array
  img_as_ar = np.array([x_valid[idx]])

  # Generate predictions
  prediction = model.predict(img_as_ar)

  # Determine what the label is based on the highest probability
  label = np.argmax(prediction)

  # Create the name of the directory and the file for the validation data set
  # After each run, delete this out_valid/ directory so that old files are not
  # hanging around in there.
  file_name = str(idx) + "_" + str(label) + "_" + str(np.argmax(str(y_valid[idx]))) + ".jpg"
  img = img_as_ar[0]

  # Reverse the image preprocessing process
  img = object_detection.reverse_preprocess_inception(img)

  # Save the image file
  cv2.imwrite(file_name, cv2.cvtColor(img, cv2.COLOR_RGB2BGR))

print('The validation data set has been saved!')

To run the program, type:

python train_traffic_light_color.py
3-run-train-traffic-light-colorJPG

Here is a chart of the accuracy statistics:

4-train-traffic-light-color-accuracy-graph-5

Within the current directory, you will now see some new images. These images show how your neural network performed on the validation data set. The second number in the file name indicates the light’s color. Remember:

  • 0 = green
  • 1 = yellow
  • 2 = red
  • 3 = not

My neural network had >92% accuracy in detecting the colors of traffic lights. Pretty good stuff!

6-network-accuracyJPG

In a real self-driving car scenario, we would want to make sure that a traffic light is detected for several frames before labeling it as one color or another.

Note how the training accuracy is worse than the validation accuracy. The reason for this is that we are using image augmentation to artificially expand the data set.

Image augmentation is used during training to help improve the model, but it is also making it harder for the network to get the right answers (i.e. correct traffic light colors) during the training phase of the model.

In contrast, the validation data set is what it is. There is no augmentation, so we are getting higher accuracy values.

To clean up the current working directory, I will cut and paste all these validation data set images into a new folder named output_validation_set.

Test Your Traffic Light Color Detection System on Images

Now that we have our trained neural network saved as traffic.h5, let’s test it out on some fresh images.

Create a new folder inside the main working directory called test_images. Inside that folder, place some images that contain traffic lights. We will see how our network performs on images it hasn’t seen before.

Open a new program called detect_traffic_light_color_img.py. This program will use traffic.h5 and the Single Shot MultiBox Detector to detect traffic light images and annotate their color.

Type the following code:

# Project: How to Detect and Classify Traffic Lights
# Author: Addison Sears-Collins
# Date created: January 17, 2021
# Description: This program uses a trained neural network to
# detect the color of a traffic light in images.

import cv2 # Computer vision library
import numpy as np # Scientific computing library
import object_detection # Custom object detection program
from tensorflow import keras # Library for neural networks
from tensorflow.keras.applications.inception_v3 import InceptionV3, preprocess_input
from tensorflow.keras.applications import imagenet_utils
from tensorflow.keras.preprocessing.image import img_to_array
from tensorflow.keras.preprocessing.image import load_img

FILENAME = "test_red.jpg"

# Load the Inception V3 model
model_inception = InceptionV3(weights='imagenet', include_top=True, input_shape=(299,299,3))

# Resize the image
img = cv2.resize(preprocess_input(cv2.imread(FILENAME)), (299, 299))

# Generate predictions
out_inception = model_inception.predict(np.array([img]))

# Decode the predictions
out_inception = imagenet_utils.decode_predictions(out_inception)

print("Prediction for ", FILENAME , ": ", out_inception[0][0][1], out_inception[0][0][2], "%")

# Show model summary data
model_inception.summary()

# Detect traffic light color in a batch of image files
files = object_detection.get_files('test_images/*.jpg')

# Load the SSD neural network that is trained on the COCO data set
model_ssd = object_detection.load_ssd_coco()

# Load the trained neural network
model_traffic_lights_nn = keras.models.load_model("traffic.h5")

# Go through all image files, and detect the traffic light color.
for file in files:
  (img, out, file_name) = object_detection.perform_object_detection(
    model_ssd, file, save_annotated=True, model_traffic_lights=model_traffic_lights_nn)
  print(file, out)

To run the program, type:

python detect_traffic_light_color_img.py
6_img8_test

Test Your Traffic Light Color Detection System on Video

Now that we have tested our traffic light color detection system on images, let’s test it out on video. I have a few mp4 files which I will save to my current directory. One of my videos is named ‘las_vegas.mp4’, and I will save the output video as ‘las_vegas_annotated.mp4’.

Here is the code. I named it detect_traffic_light_color_vid.py.

# Project: How to Detect and Classify Traffic Lights
# Author: Addison Sears-Collins
# Date created: February 1, 2021
# Description: This program uses a trained neural network to
# detect the color of a traffic light in video.

import cv2 # Computer vision library
import numpy as np # Scientific computing library
import object_detection # Custom object detection program
from tensorflow import keras # Library for neural networks
from tensorflow.keras.applications.inception_v3 import InceptionV3, preprocess_input
from tensorflow.keras.applications import imagenet_utils
from tensorflow.keras.preprocessing.image import img_to_array
from tensorflow.keras.preprocessing.image import load_img

# Make sure the video file is in the same directory as your code
filename = 'las_vegas.mp4'
file_size = (1920,1080) # Assumes 1920x1080 mp4
scale_ratio = 1 # Option to scale to fraction of original size.

# We want to save the output to a video file
output_filename = 'las_vegas_annotated.mp4'
output_frames_per_second = 20.0

# Load the SSD neural network that is trained on the COCO data set
model_ssd = object_detection.load_ssd_coco()

# Load the trained neural network
model_traffic_lights_nn = keras.models.load_model("traffic.h5")

def main():

  # Load a video
  cap = cv2.VideoCapture(filename)

  # Create a VideoWriter object so we can save the video output
  fourcc = cv2.VideoWriter_fourcc(*'mp4v')
  result = cv2.VideoWriter(output_filename,
                           fourcc,
                           output_frames_per_second,
                           file_size)

  # Process the video
  while cap.isOpened():

    # Capture one frame at a time
    success, frame = cap.read()

    # Do we have a video frame? If true, proceed.
    if success:

      # Resize the frame
      width = int(frame.shape[1] * scale_ratio)
      height = int(frame.shape[0] * scale_ratio)
      frame = cv2.resize(frame, (width, height))

      # Store the original frame
      original_frame = frame.copy()

      output_frame = object_detection.perform_object_detection_video(
        model_ssd, frame, model_traffic_lights=model_traffic_lights_nn)

      # Write the frame to the output video file
      result.write(output_frame)

    # No more video frames left
    else:
      break

  # Stop when the video is finished
  cap.release()

  # Release the video recording
  result.release()

  # Close all windows
  cv2.destroyAllWindows()

main()

To run the program, type:

python detect_traffic_light_color_vid.py

You will see in the video below that it isn’t perfect. It doesn’t catch all the traffic lights.

To improve performance, I recommend playing around with the score threshold on this line in the object_detection.py code.

if color and label_text and accept_box(output["boxes"], idx, 5.0) and score > 50:

The score is on a threshold of 0 to 100. You can make it 40, for example.

Also, if the color on the traffic lights isn’t accurate, consider adding more training examples, and retraining the color detection neural network on these samples. The more data you have, the better.
